Garage door hinge (Feb 2022)

Get link
Facebook
X
Pinterest
Email
Other Apps

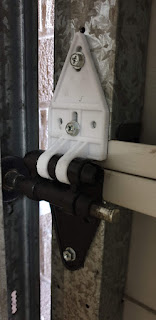

A hinge on my garage door broke when somebody crashed into it. I made a new one. PETG lasted about 3 months. Nylon has lasted a lot longer without breaking.
